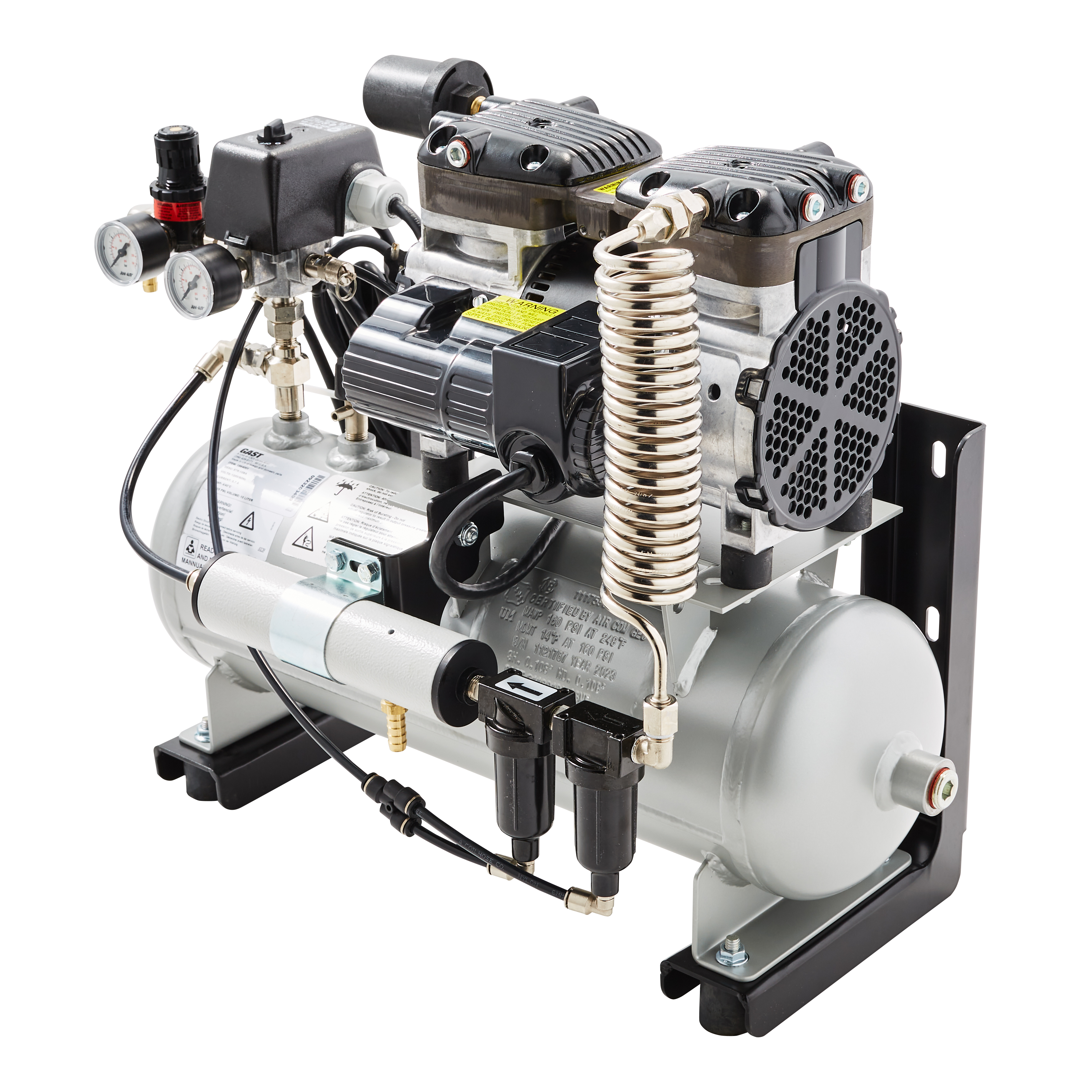

GAST 87R-10BA Beverage Dispensing System

87R-10BA

Description

Clean, Powerful, Quiet, Economical

The GAST 87R-10BA was designed specifically for use in modern "bag-in-a-box" beverage dispensing applications.  The 87R-10BA provides an economical and  safe alternative to expensive and cumbersome CO2 bottle gas for dispensing.  Built on GAST's workhorse, the 87R, an oil-free rocking piston compressor renown for it's quiet and trouble free operation.

The 87R-10BA is an oil-less rocking piston design, so there is no need to handle or dispose of lubricating oil. Additionally, the included filtration and cooling  provide moisture free air for the most demanding pneumatic applications.

It provides an impressive 2.9 CFM (81 LPM) of open air flow and 1.0 CFM (27 LPM) at 116 psi to ensure more than enough air capacity for  beverage dispensing along with other potential pneumatic needs on site.

GAST's 87R compressor is widely heralded for its quiet operation. It boasts impressive sound performance of 65 dBA or less. Additionally, the unit includes vibration dampers to ensure nearby staff are undisturbed during run time.

By eliminating the need to use CO2 bottles for liquid dispensing, the 87R-10BA offers an easily implemented solution for long term savings.

Specifications

Thermal Protection: YES
Flow @ 60 Hz: 2.9 cfm
( )
Flow @ Max Pressure - 60 Hz: 1 cfm
( )
Max Pressure: 116 psi
( )
Power: 0.5 hp
( )
Max Sound Level @ 60 Hz: 65 dB(A)
Weight: 51 lbs
( )
Duty Cycle: 100%
Tank Size: 10 gal
( )
Warranty: 1 Year
Thermal Protection: YES
Flow @ 60 Hz: 2.9 cfm
( )
Flow @ Max Pressure - 60 Hz: 1 cfm
( )
Max Pressure: 116 psi
( )
Power: 0.5 hp
( )
Max Sound Level @ 60 Hz: 65 dB(A)
Weight: 51 lbs
( )
Duty Cycle: 100%
Tank Size: 10 gal
( )
Warranty: 1 Year
