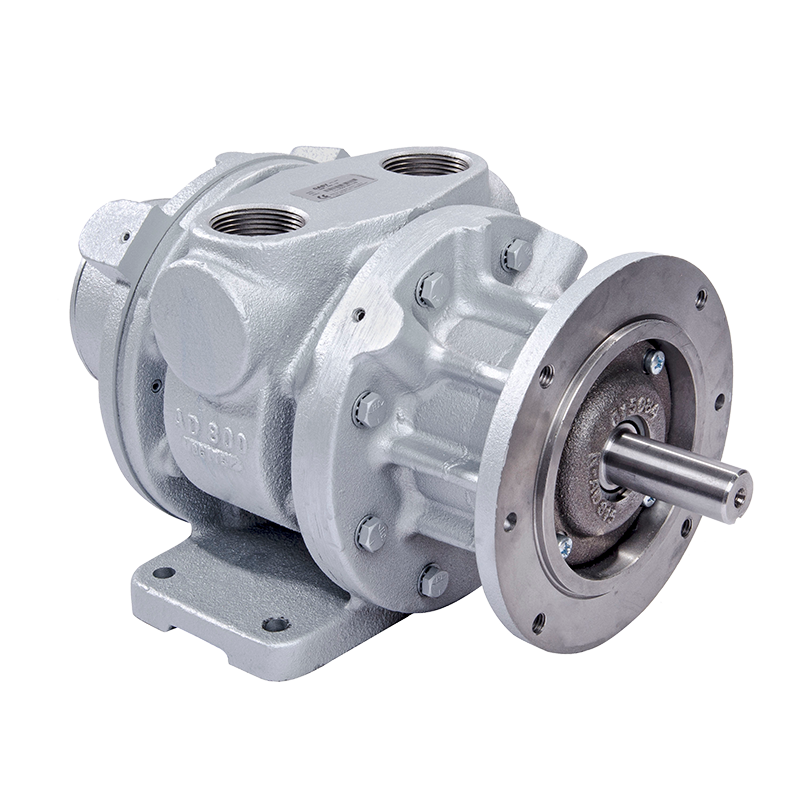

16AM-FRV-13

The 16AM series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.



Technical Data Sheet
Distributor Lookup

Specifications

Key Type: M30-KEYSQ 1.0
Max Air Consumption: 275 cfm
( 467.23 m3h )
Max Power: 9 hp
( 6.71 kW )
Max Pressure: 101 psi
( 6.96 bar )
Max Sound Level: 113 dB(A)
Max Speed: 2000 rpm
Max Torque: 372 in-lb
( 42.04 N m )
Mount: FOOT
Output Shaft Type: Keyed
Port Size and Type: 1-1/4" NPT
Regulatory Approval: CE, ATEX
Rotation: Reversible
Shaft Size: 0.88 in
( )
Stainless Steel: NO
Starting Torque @ 80psi: 268 in-lb
( 30.28 N m )
Torque Max Speed: 290 in-lb
( 32.77 N m )
Vanes: 6
Weight: 80 lbs
( 36.29 kg )
Key Type: M30-KEYSQ 1.0
Max Air Consumption: 275 cfm
( 467.23 m3h )
Max Power: 9 hp
( 6.71 kW )
Max Pressure: 101 psi
( 6.96 bar )
Max Sound Level: 113 dB(A)
Max Speed: 2000 rpm
Max Torque: 372 in-lb
( 42.04 N m )
Mount: FOOT
Output Shaft Type: Keyed
Port Size and Type: 1-1/4" NPT
Regulatory Approval: CE, ATEX
Rotation: Reversible
Shaft Size: 0.88 in
( )
Stainless Steel: NO
Starting Torque @ 80psi: 268 in-lb
( 30.28 N m )
Torque Max Speed: 290 in-lb
( 32.77 N m )
Vanes: 6
Weight: 80 lbs
( 36.29 kg )
View Model Details

Downloads

Catalog
Technical Data Sheet
Operating & Maintenance Manual
Service Video

Buy Kits & Accessories

Series Options

Mounting Options

Gast air motors can operate in any position offering you a great degree of flexibility when mounting the air motor or integrating the air motor into an OEM system. Imperial units are available in foot, face and NEMA 143 and 145TC mounting options.

Product Marking

This product is marked: II 2 G D c T4 (+1 ℃

Customization

Customization of materials, shafts, paint colors, mounting configurations and gearing is available for OEM applications.

Instant starting, stopping & reversing

The ability to instantly start, stop and reverse (RV models) eliminates the operational delays associated with electric motor speed up and slow-down periods.
