87R647-PS101-N470X
Description
The 87R with Sound Shield Technology takes Gast’s oil-less rocking piston compressors and vacuum pumps to a whole new level of quiet. This Sound Shield equipped model provides a 25% reduction in dB(A) and 38% reduction in sones versus the standard GAST model @ open flow. The result is a quieter, more pleasant working environment with the same outstanding performance, durability and flexibility of our 86R/87R family making them the ideal choice for a wide array of applications.
Distributor LookupSpecifications
Max Speed:
1725 rpm
Max Speed @ 50hz:
1425 rpm
Max Speed @ 60hz:
1725 rpm
Thermal Protection:
YES
Operating Voltage:
115-120
Regulatory Approval:
cUSus, CE, UKCA
Mount:
FACE/FOOT
Power Rating:
0.5 hp
(
0.37 kW
)
Power Rating @ 50hz:
0.5 hp
(
0.37 kW
)
Power Rating @ 60hz:
0.5 hp
(
0.37 kW
)
Flow @ 50hz:
4.8 cfm
(
8.16 m3h
)
Flow @ 60hz:
4.8 cfm
(
8.16 m3h
)
Max Pressure:
30 psi
(
2.07 bar
)
Max Pressure @ 50hz:
30 psi
(
2.07 bar
)
Max Pressure @ 60hz:
30 psi
(
2.07 bar
)
Amps Running @ 50hz:
5.1
Amps Running @ 60hz:
6.2
Max Sound Level:
60 dB(A)
Weight:
19.1 lbs
(
8.66 kg
)
Duty Cycle:
100%
Warranty:
1 Year

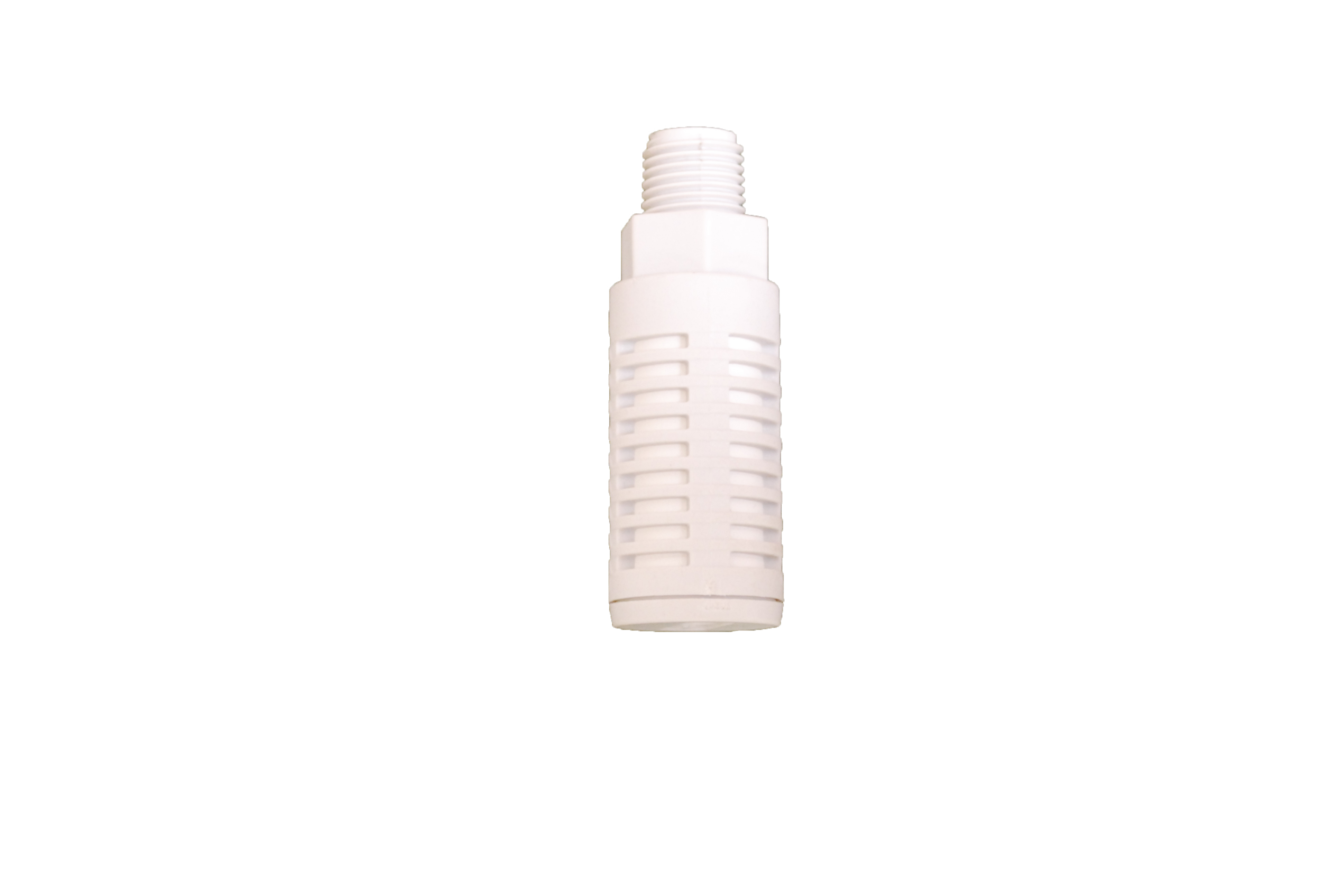

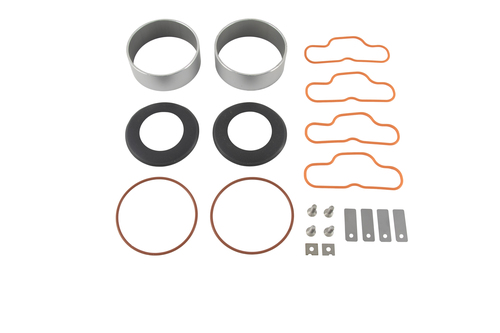

Buy Kits & Accessories
FAQs
- Can water be pumped through my unit?
- I am an OEM looking to specify a custom 86R or 87R configuration for my needs. What customization options are available?
- Does my 86R or 87R compressor or pump come from the factory with Sound Shield installed?
- If I install Sound Shield, does it affect my factory warranty?
- How do I keep my 86R or 87R running at the same performance it left the factory?
- Does Sound Shield cause an increase in temperatures in or around the compressor or pump?
- How does Sound Shield affect life of the 86R or 87R?
- Does Sound Shield impact air flow for either pressure or vacuum configurations?
- Can additional filters be added to an 86R or 87R that has already been fitted with Sound Shield?
