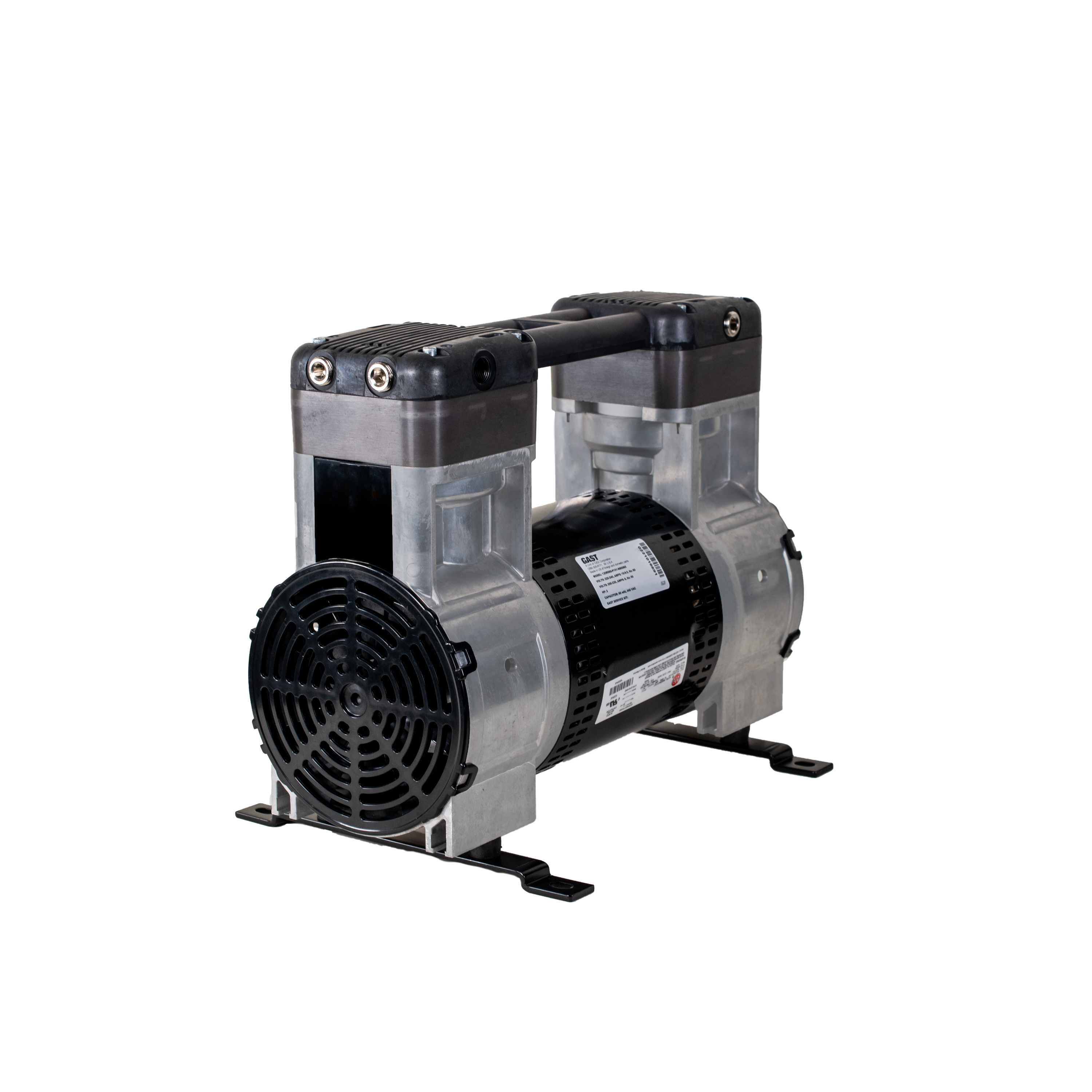

120R689-P102M-N800NX (Cabinet Retrofit Model)

For OEMs seeking a quieter, more compact piston compressor that provides greater air flow with a lower amp draw, the new 120R Series rocking piston air compressor from Gast Manufacturing is a game-changing solution. At 2 HP, it's the most powerful rocking piston compressor with airflow capacity up to 12 cfm and pressure to 145 psi. This unmatched power in a smaller footprint allows OEMs to replace two or more smaller piston compressors with a single Gast 120R unit -- sending more air to their product while using less space and energy.
Specifications
FAQs
-
Where is my 120R made?
The 120R is manufactured in Benton Harbor, Michigan USA.
-
I am an OEM looking to specify a custom 120R configuration for my needs. What customization options are available?
Gast offers custom solutions factory direct and through our authorized distribution network. Custom options available, but are not limited to: wiring and connectors, capacitor mounting and covers, port configurations, alternative mufflers and filters, pressure gauges and regulators, and bulk packaging. Please consult the factor (technical.gast@idexcorp.com) or find a local distributor to inquire further.
-
How do I keep my 120R running at the same performance it left the factory?
Following the Gast recommended service intervals will help keep your compressor running at peak performance. We recommend service using a Gast 120R Preventative Maintenance Kit (part number: K1027) every 2000 hours or every 2 years and the Gast 120R Service Kit (part number: K1028) at 6000 hours or 5 years, whichever comes first.
-
Where can I mount a capacitor?
Included with your 120R is a mounting clamp and terminal cover to mount the compressor onto the body of the compressor. A capacitor cover (part number: K1031) is sold separately. Alternatively, the capacitor can be remote mounted by the end user.
-
I'm trying to replace my old Jun-Air OF1202 compressor with the 120R. Do I need special hardware?
The 120R was designed to fit in the same space as the OF1202 series and includes mounting brackets with flexible holes so you can utilize your existing mounting points.
-
Can I mount and operate the 120R on its side?
Yes. The 120R was designed and tested to run on its side and will maintain factory performance. This will require a Gast 120R Side Mount Bracket Kit (part number: K1032), sold separately.
-
Is Sound Shield technology available?
Coming soon. Please consult the factory (technical.gast.@idexcorp.com) for sound reduction options.
